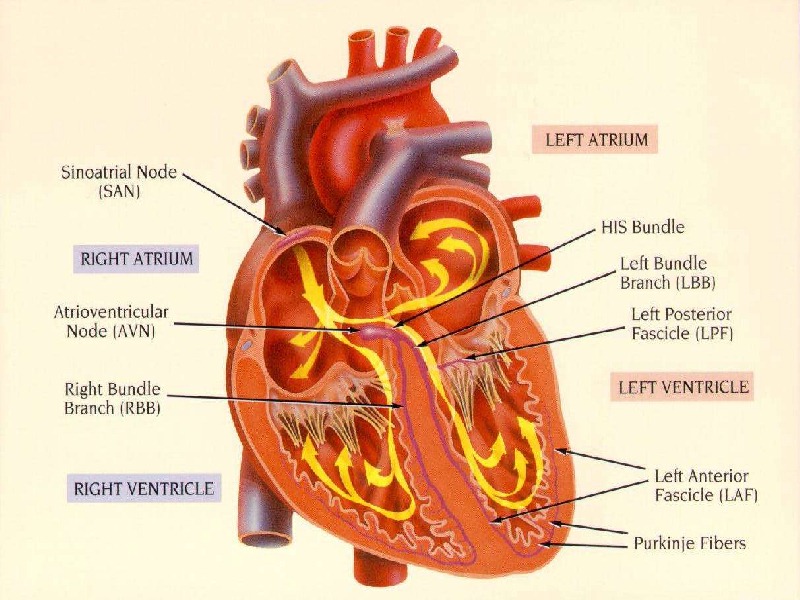

Electrical conduction of the heart
Electrical conduction



Complex
ECG Waveforms



The baseline or isoelectric line

This is represented as a straight line on the ECG paper where there is no positive or negative charges of electricity to create deflections.



Waveforms

These are representations of electrical activity created by depolarization and repolarization of the atria and ventricles. If the electrical current is flowing towards the lead then a positive deflection will be seen. If flowing away from lead then a negative deflection will be seen. Wave forms that are above and below the Isoelectric line are called biphasic.



P Wave

Electrical impulses originating in the SA node trigger atrial depolarization. The normal P wave is no more than 0.1 seconds in duration and 2.5mm high. The direction of electrical activity is from SA to AV node. The P wave is a representation of the time it takes for atrial depolarization. It is viewed normally as small and curved with a positive deflection. Seen at it's tallest on lead II.



T Wave

Ventricular repolarization which follows ventricular depolarization, is represented by the T wave. Its shape is rounded and taller and wider than the P wave. It is also more sensitive to physiologic and hormonal changes in shape but usually presents as a positive deflection 5 -10mm in height.



U Wave

After T wave an ECG can sometimes show a U Wave. It is of the same deflection as T Wave and similar to shape to P Wave. The U Wave is thought to represent late repolarization of the Purkinje fibers in the Ventricles and is more often not shown on a rhythm strip.

[Top]


Intervals and Segments

Interval refers to the length of a wave plus the isoelectric line that follows it. The length of an interval ends when another wave begins. They are named by using the letters of both waves on either side. Intervals contain waves.
Segments refers to the baseline between the end of one wave and the beginning of the next wave. Segments are the lines between waves. See diagram below.



.Intervals and segments



PR Interval

Is the length along the baseline from the beginning of the P wave to the beginning of the QRS complex. This Is normally 0.12 to 0.20 seconds in duration (3 to 5 small squares).

QT Interval

Is the beginning of the QRS complex to the end of the T wave. In the presence of a U wave the measure should be from the beginning of the QRS complex to the end of the U wave.

ST Segment

Is the length between the end of the S wave of the QRS complex and the beginning of the T wave. It is electrically neutral.

PR Segment

It represents the delay in conduction from atrial depolarization to the beginning of ventricular depolarization. It is also electrically neutral.

[Top]


The Complex

The QRS complex represents ventricular depolarization. It consists of three waveforms. The normal complex begins with a downward deflection known as the Q wave, followed by an upward deflection called the R wave. The next downward deflection will be the S wave. All ventricular complexes are known as QRS complexes even if every wave is not present in all complexes. The normal QRS is 0.04 to 0.12 seconds.



Estimating Rates and Rhythm

RATE - Graph ECG paper is divided into vertical and horizontal lines. (see background example). small squares are 1mm sq. The larger squares are 5mm. The time or rate is estimated by measuring the number of square blocks along the horizontal line. The distance across one small square is 0.04 seconds. The distance across one large square (5 small squares) is 0.2 seconds. (0.04 x 5 = 0.2) The distance across 5 large squares is equal to 1 second. (0.2 x 5 = 1.0)


Vertical lines measure amplitude or voltage and is measured in millivolts. Each small square along the vertical line equates to 0.1 mV. One large square equals 0.5mV


Horizontal lines measure time. Vertical lines measure voltage.

A one second strip consists of 5 large blocks, three seconds equates to 15, six second equates to 30 and ten seconds equates to 50.



Using the R waves (or complexes)

Begin by counting the R waves in a ten second strip. Multiply that number by 6 to determine the heart rate in one minute. For example if there were eight R waves in a ten second strip this would equate to 8 x 6 = 48 beats/min. A normal 12 lead ECG page (A4 landscape) is just over 10 seconds (25 cm)

Quick count
Count the large blocks that fall between two R waves.
Start by finding an R wave that falls on or close to a dark line.



Quick Guide to estimating heart rate



Large squares between
R waves

Approximate
heart rate

1

300

2

150

3

100

4

75

5

60

6

50

[Top]


Rhythm

To determine a rhythm or pattern, you must measure the distances between complexes and compare this against the next grouping of complexes. This is done by measuring the distance between one P wave and the next  P wave or from one R wave to the next.


If the PP or RR intervals are consistent then the rhythm is normal or regular.
